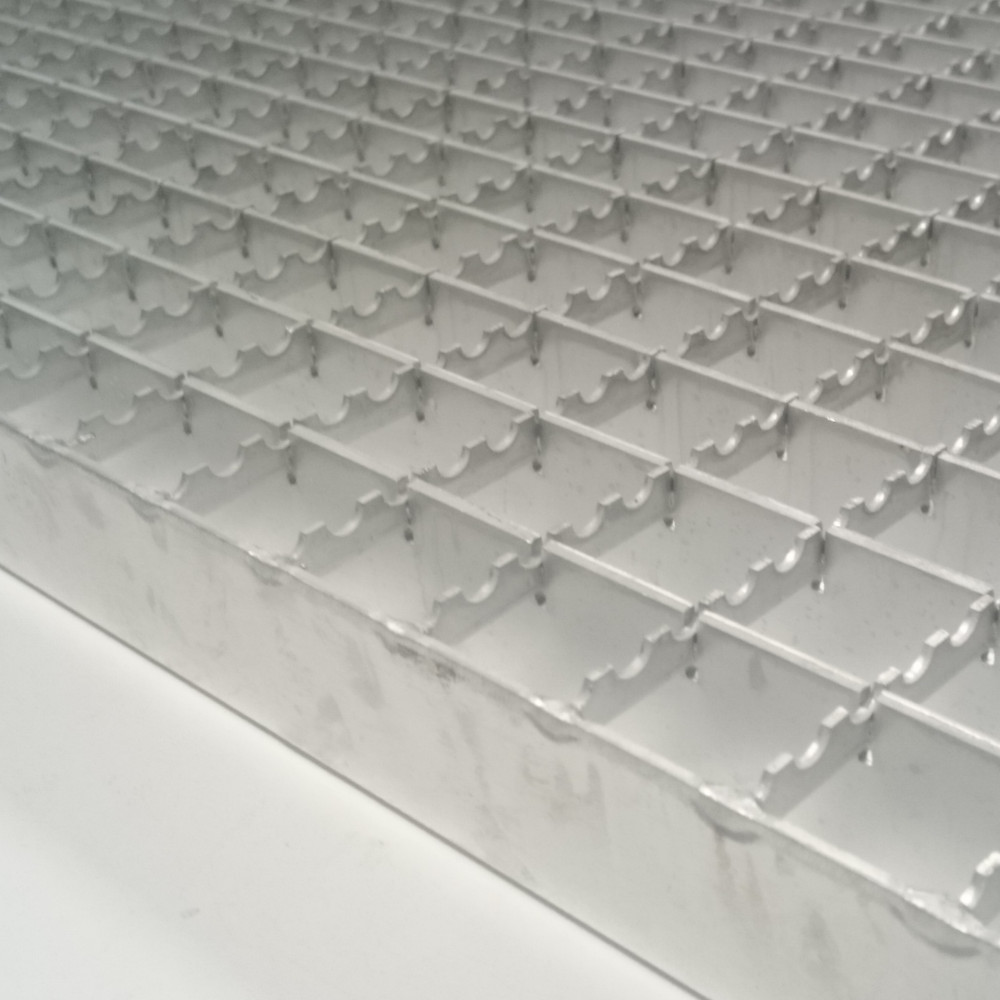

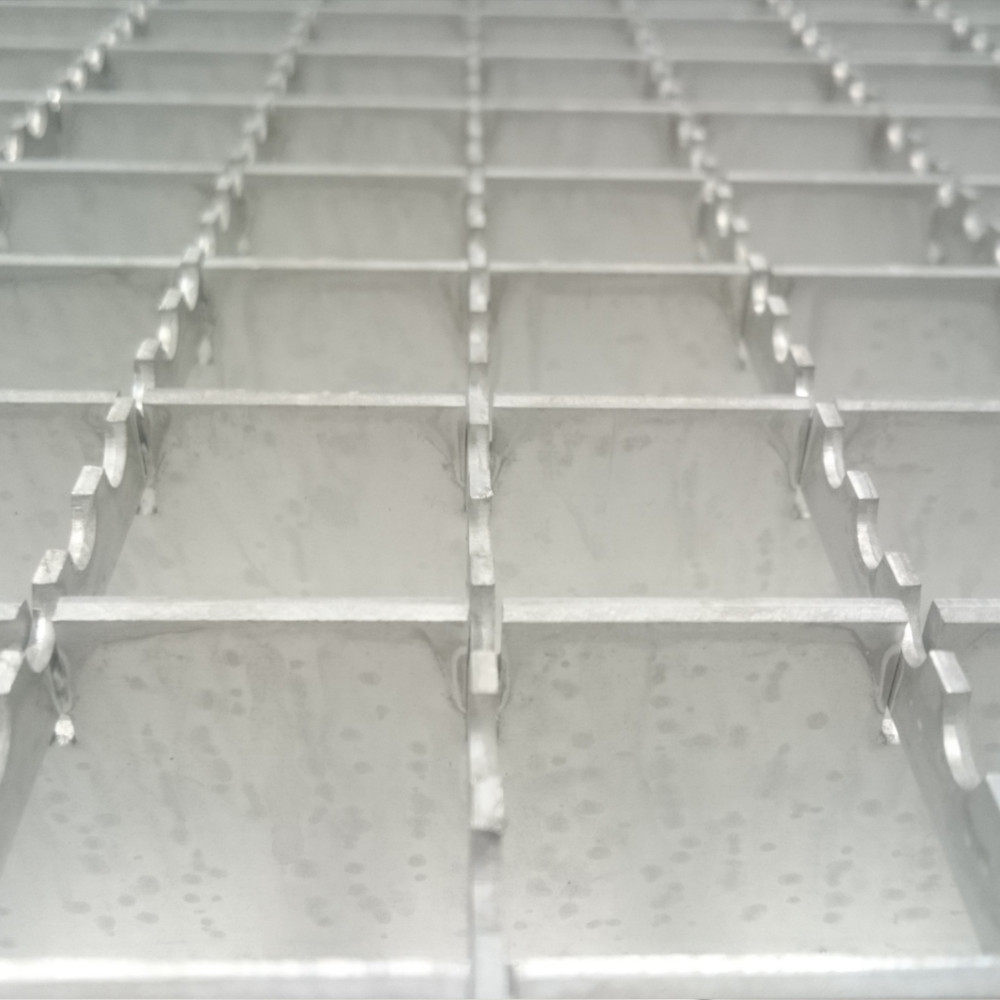

Standard bar grating – 1000x1000mm – 40/3 – Anti-slip – Aluminium
176,70 € excl. VAT
| Weight | 12,5 kg |
|---|---|
| Dimensions | 100 × 100 × 3 mm |
| Width / Load bearing bars (A) | |
| Length / Cross bars (B) | 1000 mm |
| Height / Thickness load bearing bars | 40 mm / 3 mm |
| Mesh size | 33×33 mm |
| Material | Aluminium |
| Point load allowed (200x200mm) | 1190 kg taking into account a span width of 920mm |
| Total distributed load allowed | 227 kg taking into account a span width of 920mm |
| Weight | ? |
- Excellent service (customers rate us an average of 4.5/5)
- Everything in stock with more than 6000 m² of stock
- Inexpensive shipping
- Fast delivery
Using your grating correctly
In order to guarantee the load-bearing capacity of the bar grating, it must be placed in a way that the width / load bearing bars bridges the span width, ie the distance between the two supporting points.
Make sure that the surface of the grating resting on the support points is at least at the height / thickness of the grating.
