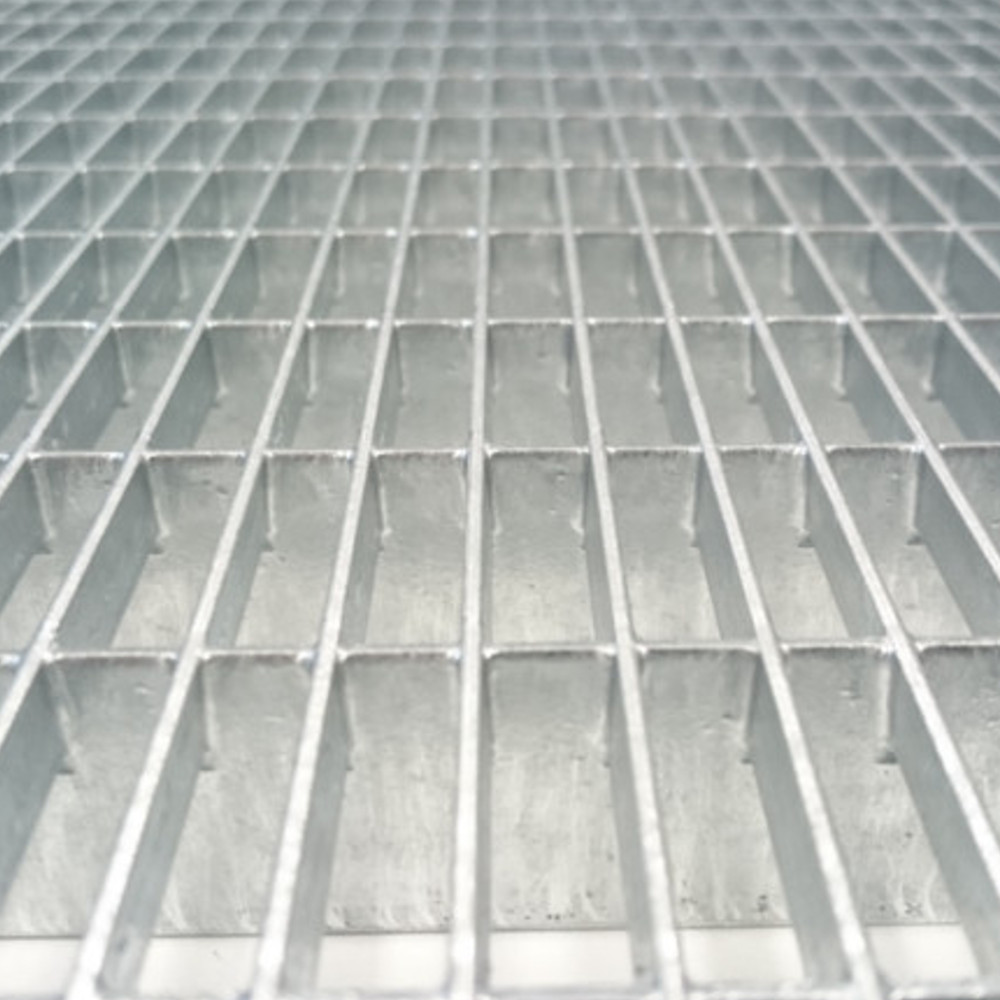

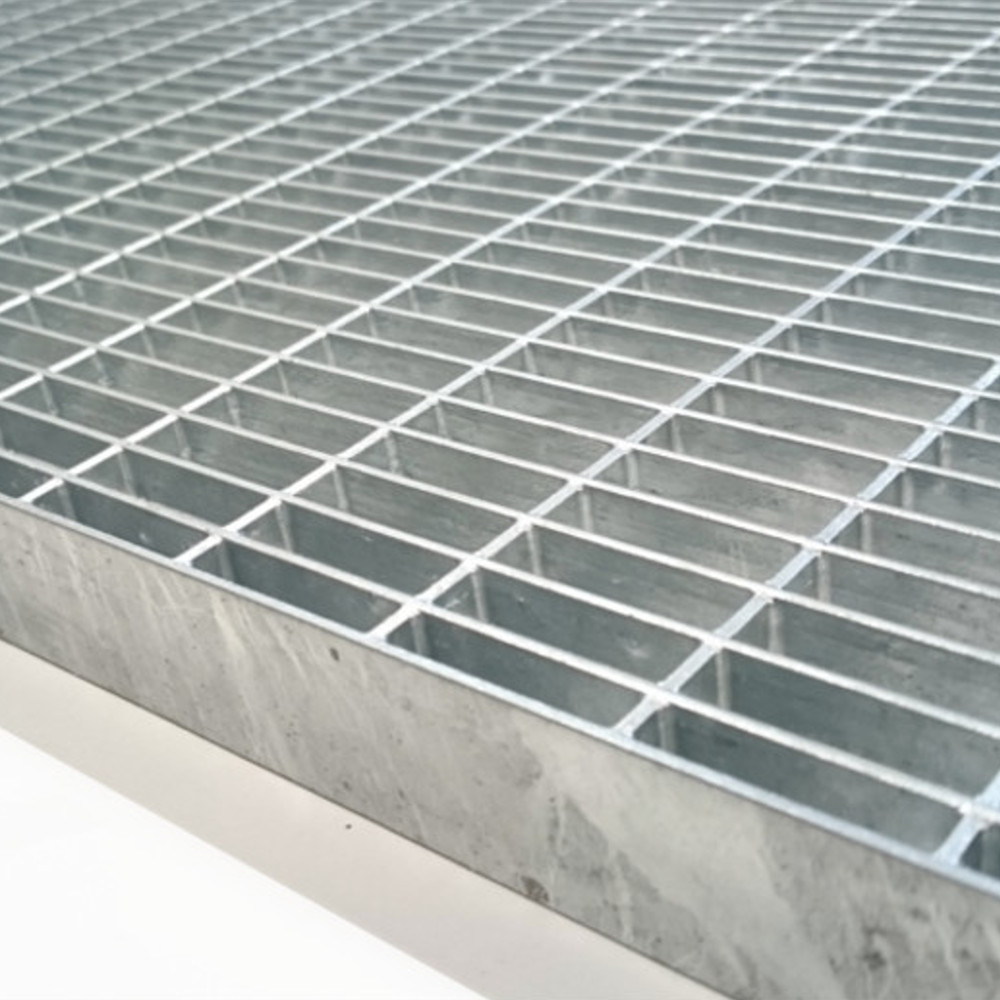

Standard bar grating – 1000x1000mm – 30/2 – Mesh 33x11mm

148,01  incl. VAT

Weight32,00 kg
Dimensions100 × 100 × 3 mm
Width / Load bearing bars (A)

Length / Cross bars (B)

1000 mm

Height / Thickness load bearing bars

30 mm / 2 mm

Mesh size

33×11 mm

Material

Galvanized steel

Point load allowed (200x200mm)

176 kg taking into account a span width of 940 mm

Total distributed load allowed

1038 kg taking into account a span width of 940 mm

Weight

32,00 kg

SKU SR100100302331p Category

Using your grating correctly

In order to guarantee the load-bearing capacity of the bar grating, it must be placed in a way that the width / load bearing bars bridges the span width, ie the distance between the two supporting points.

Make sure that the surface of the grating resting on the support points is at least at the height / thickness of the grating.
