Standard bar grating- 1000x1000mm – 30/2 – Stainless steel

27498,46  incl. VAT

  • Width / Load bearing bars (A): 1000 mm
  • Length / Cross bars (B): 1000 mm
  • Height / Thickness load bearing bars: 30 mm / 2 mm
  • Mesh size: 33x33 mm
  • Material: Stainless steel 304
  • Weight: 21,00 kg
SKU: MR100100302inox Category:
Description

Description

Using your grating correctly

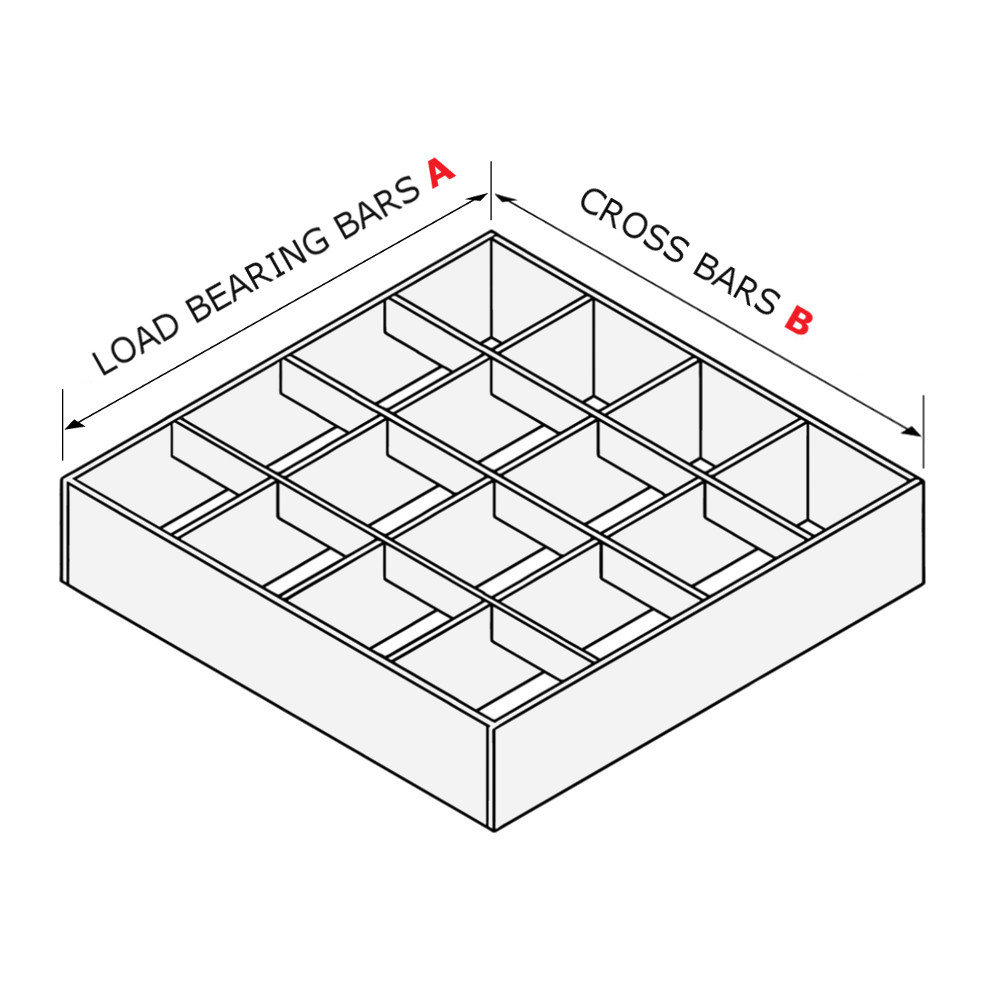

In order to guarantee the load-bearing capacity of the bar grating, it must be placed in a way that the width / load bearing bars bridges the span width, ie the distance between the two supporting points.

Make sure that the surface of the grating resting on the support points is at least at the height / thickness of the grating.

Additional information

Additional Information

Weight 21.00 kg
Dimensions 100 × 100 × 3 mm
