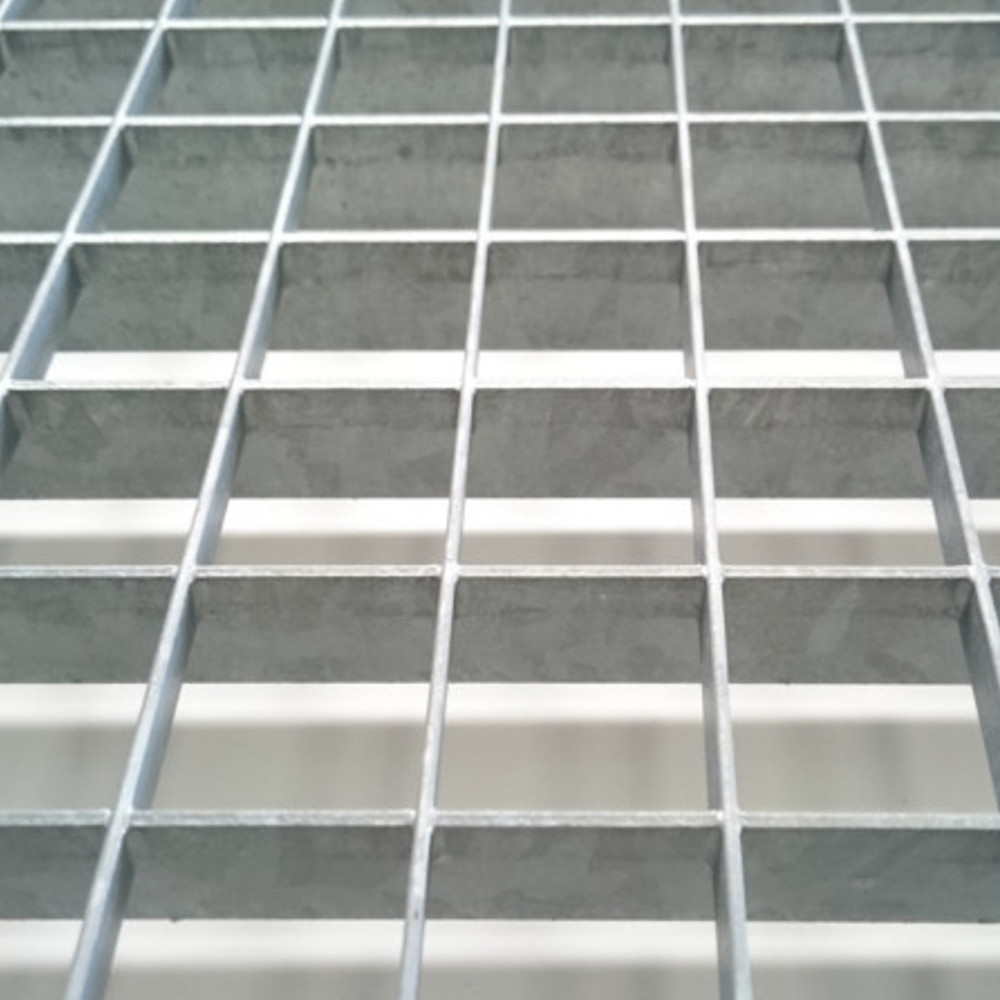

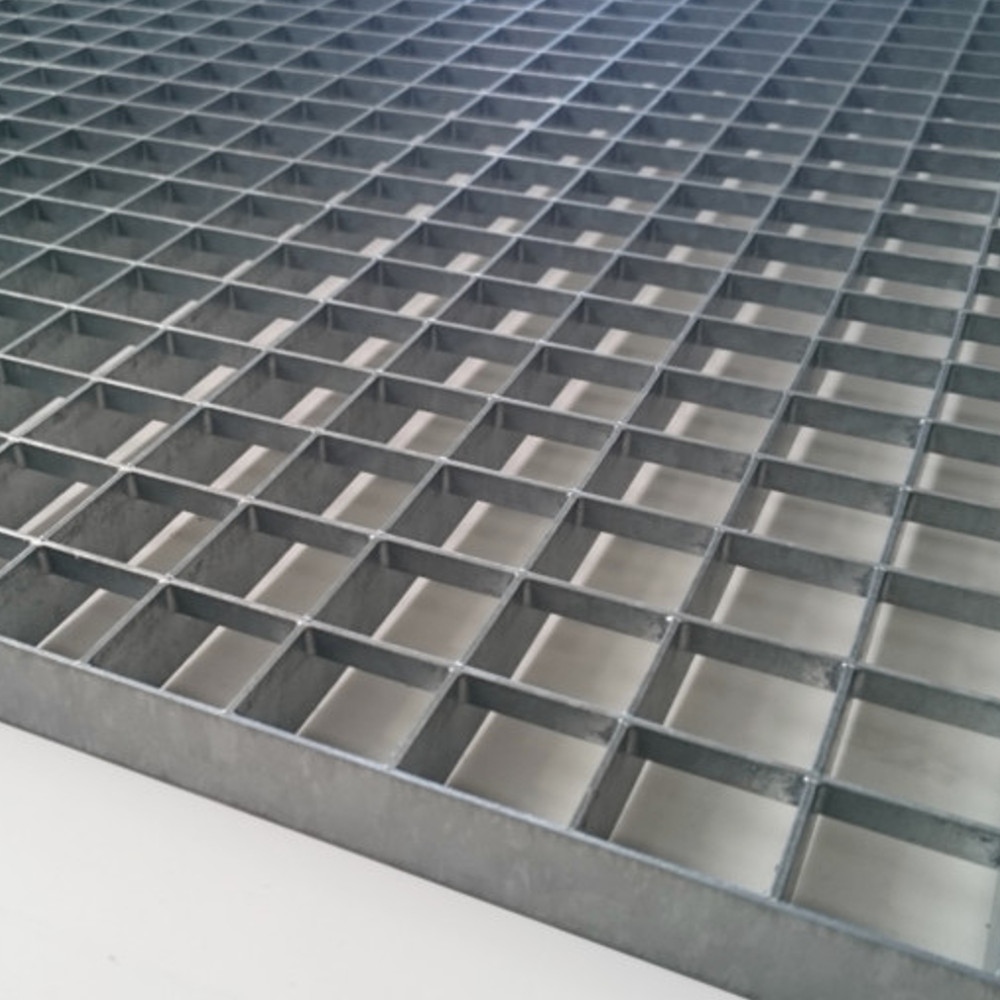

Standard bar grating – 800x500mm – 30/2
36,29 € excl. VAT
| Weight | 7,3 kg |
|---|---|
| Dimensions | 80 × 50 × 3 mm |
| Width / Load bearing bars (A) | |
| Length / Cross bars (B) | 500 mm |
| Height / Thickness load bearing bars | 30 mm / 2 mm |
| Mesh size | 33×33 mm |
| Material | Galvanized steel |
| Point load allowed (200x200mm) | 226 kg taking into account a span width of 740 mm |
| Total distributed load allowed | 1620 kg taking into account a span width of 740 mm |
| Weight | 8,40 kg |
- Excellent service (customers rate us an average of 4.5/5)
- Everything in stock with more than 6000 m² of stock
- Inexpensive shipping
- Fast delivery
Using your grating correctly
In order to guarantee the load-bearing capacity of the bar grating, it must be placed in a way that the width / load bearing bars bridges the span width, ie the distance between the two supporting points.
Make sure that the surface of the grating resting on the support points is at least at the height / thickness of the grating.
